This manual gives you a walk-through on how to use the Stereoisomer Generator Plugin:



Introduction



The Stereoisomer Generator Plugin is able to enumerate all possible stereoisomers of a given compound. The plugin handles both tetrahedral- and double-bond-type stereo centers.

An example for stereoisomer generation output in MarvinView (see Fig. 1) and in MarvinSpace (see Fig. 2) can be found below.

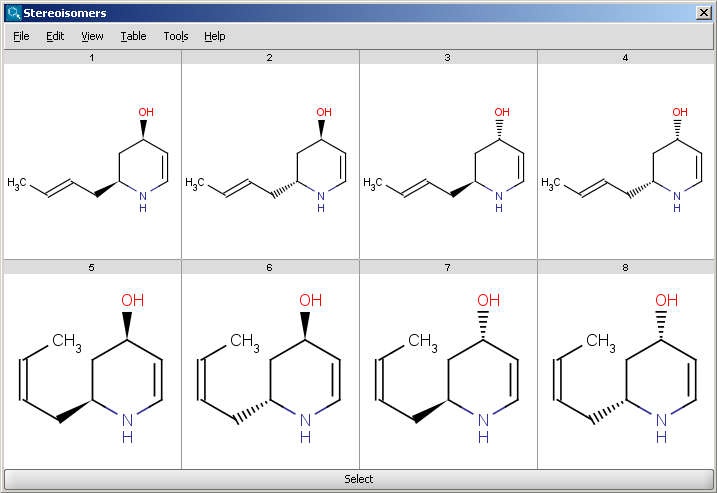

Fig. 1 Generated stereoisomers in MarvinView



Importing generated isomers

Icon

To replace your drawn molecule in the sketcher with any of the isomers shown, click on the structure then press "Select" at the bottom of the cells (the result window will be closed).

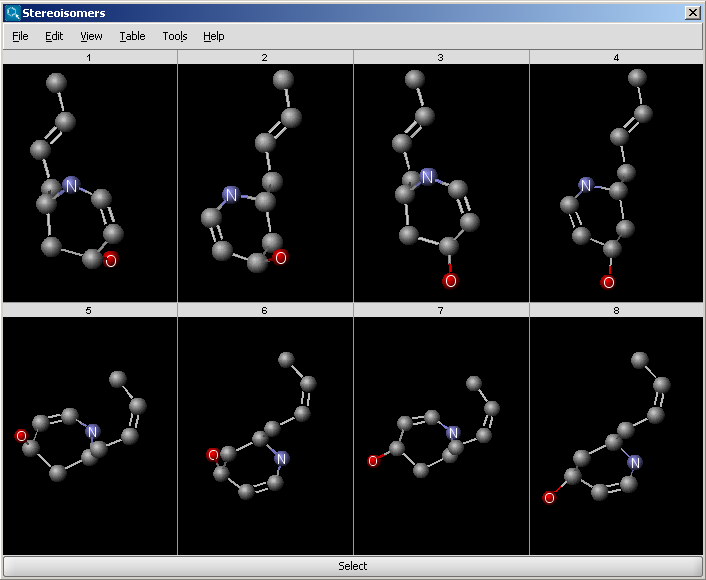

Fig. 2 Generated stereoisomers in MarvinSpace



On filtering invalid structures

Icon

If "Filter invalid 3D structures" option is switched on in the Stereoisomers Options panel, the stereoisomers can also be displayed in 3D.

Options



The panel of the plugin has the following options to set:

  • Generate
    1. Tetrahedral stereo isomers: only the R/S isomers are generated.
    2. double bond stereo isomers: only E/Z isomers are generated.
    3. both: both R/S and E/Z isomers are generated.
  • Generate all stereoisomers: all isomers are generated
  • Generate maximum: sets an upper limit for the number of generated isomers. This option gets enabled if not all isomers are generated.
  • Protect tetrahedral stereo centers: if checked, stereocenters already pre-set are not included in the stereoisomer generation.
  • Protect double bond stereo: if checked, all double bonds with pre-set stereo information remain intact.
  • Filter invalid 3D structures: sterically restricted isomers are discarded.
  • Display in 3D: results are displayed in a 3D viewer. By default the results are shown in a 2D panel, one for each generated isomer. This option is enables only if 3D filtering is enabled.



Fig. 3 Options window for stereoisomer calculation


References

  1. Smith, M. B.; March, J. Advanced Organic Chemistry, 5th ed., Wiley Interscience, New York, 2001; pp 1218-1223. ISBN 0471585890
